859-744 | WAGO

Optocoupler terminal block, spring-clamp connection, 0.08-2.5 mm², 30 A, gray, 859-744

Order No.: 45P2373
EAN: 4055143605458
MPN:
859-744
Series: 859
859-744 WAGO Series Terminals Image 1
859-744 WAGO Series Terminals Image 2
859-744 WAGO Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
67.116 € *
Available: 6 pcs.
Leadtime: 3 Weeks **
Total Price:
67.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
67.116 €

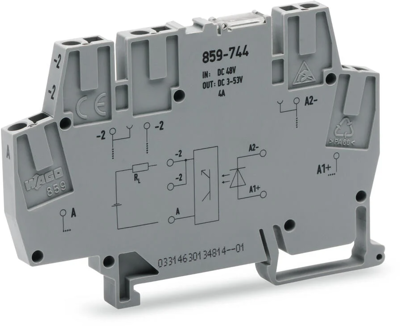

Optocoupler module, 859-744, WAGO

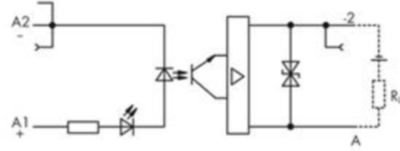

Optocoupler module, Nominal input voltage: 12 - 48 VDC, Output voltage range: 10 - 53 VDC, Limiting continuous current: 4 A, 2-wire connection, Module width: 6 mm, gray.

Technical specifications
Connection Federklemmanschluss
Version Optokopplerklemme
AWG cross-section AWG 28 bis 14
Rated Voltage 300 V

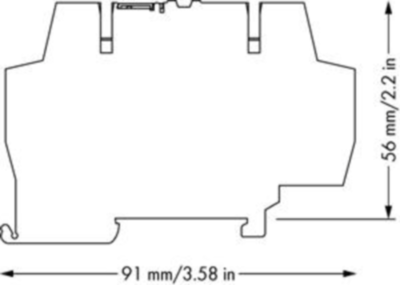

Width 6 mm
Colour grau
Height 56 mm
Length 91 mm
Cable cross-section 0,08-2,5 mm²
Rated current 30 A
Degree of soiling 2
Logistics
Country of origin DE
Customs tariff number 85365005
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Tetrabrombisphenol A (TBBPA), Blei
