859-706 | WAGO

Optocoupler terminal block, cage clamp, 0.14-2.5 mm², 0.5 A, gray, 859-706

Order No.: 45P7982
EAN: 4055143604697
MPN:
859-706
Series: 859
859-706 WAGO Series Terminals Image 1
859-706 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
40.8765 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
40.88 € *
Price list
Quantity
Price per unit*
1 pcs.
40.8765 €
5 pcs.
39.6508 €
10 pcs.
38.0562 €
25 pcs.
35.7714 €
*incl. VAT plus shipping costs
**Subject to prior sale

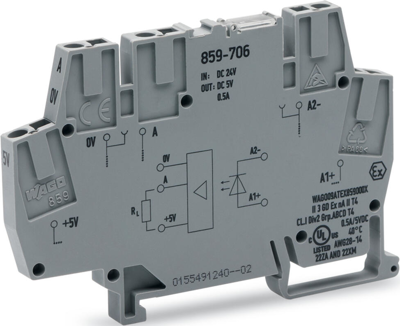

Optocoupler module, 859-706, WAGO

Optocoupler module, Nominal input voltage: 24 VDC, Output voltage range: 4-6.25 VDC, Limiting continuous current: 0.5 A, Frequency: 10 kHz, Module width: 6 mm, gray.

Technical specifications
Connection Käfigklemme
Version Optokopplermodul
AWG cross-section AWG 26 bis 14
Rated Voltage 300 V
Width 6 mm
Colour grau

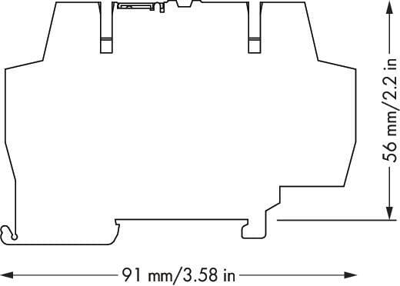

Height 91 mm
Length 56 mm
Cable cross-section 0,14-2,5 mm²
Rated current 0.5 A
Degree of soiling 2
Logistics
Country of origin DE
Customs tariff number 85365005
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
