826-162 | WAGO

Terminal block, spring-clamp connection, 0.08-4.0 mm², 2 pole, 32 A, 4 kV, gray, 826-162

Order No.: 45P1938
EAN: 4044918532679
MPN:
826-162
Series: 826

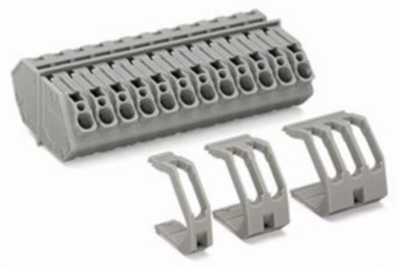

826-162 WAGO Series Terminals Image 1
826-162 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
6.069 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
6.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.069 €

Feed-through terminal block, 826-162, WAGO

Feed-through terminal block, Conductor/conductor connection, Plate thickness: 1 - 4 mm, 4 mm², Pin spacing 7 mm, 2-pole, CAGE CLAMP, 4,00 mm², gray.

Features

  • Feed-through terminal blocks with screwdriver-actuated CAGE CLAMP on both sides
  • Easy, tool-free installation
  • Direct ground contact with enclosure/panel
  • Test ports available on both sides
Technical specifications
Version Klemmenblock
Number of terminals 4
Pin number 2-polig
Cable cross-section 0,08-4,0 mm²
AWG cross-section AWG 28 bis 12
Rated surge voltage 4 kV
Rated current 32 A
Rated Voltage 320 V
Degree of soiling 2
Length 42.5 mm
Width 15.5 mm
Height 23.55 mm
Connection Federklemmanschluss
Colour grau
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
