785-623 | WAGO

1-wire potential equalization terminal, cage clamp, 6-35 mm², 1 pole, 125 A, 6 kV, gray, 785-623

Order No.: 45P8306
EAN: 4045454601898
MPN:
785-623
785-623 WAGO Series Terminals

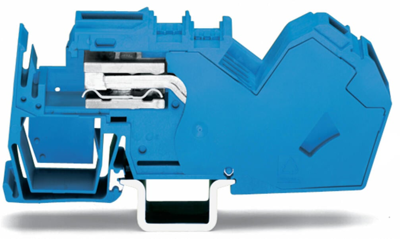

Image may differ
Unit Price (€ / pc.)
16.9813 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.98 € *
Price list
Quantity
Price per unit*
1 pcs.
16.9813 €
10 pcs.
15.6128 €
25 pcs.
15.0535 €
*incl. VAT plus shipping costs
Subject to prior sale

1-conductor power distribution disconnect terminal block, 785-623, WAGO

This power distribution disconnect terminal block ensures fault-free electrical installation. Strip lengths must be 23 mm when connecting a conductor to this power distribution disconnect terminal block. This product features a conductor terminal and utilizes CAGE CLAMP. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. Depending on the type of conductor, this power distribution disconnect terminal block is designed for a conductor cross section ranging from 6 mm² to 35 mm². It has one level. You can connect a single potential using one clamping point. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using a DIN-35 rail.

Technical specifications
Filter Property Value
Rated Voltage 400 V
Rated current 125 A
Pin number 1 pole
Degree of soiling 3
Number of terminals 1
Cable cross-section 6-35 mm²
Connection cage clamp
Colour gray
Width 16 mm
Version 1-wire potential equalization terminal
Height 116.5 mm
Rated surge voltage 6 kV
AWG cross-section AWG 8 to 2
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
