785-607 | WAGO

2-wire protective earth terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, yellow/green, 785-607

Order No.: 45P0636
EAN: 4045454902650
MPN:
785-607
Series: TOPJOB Classic

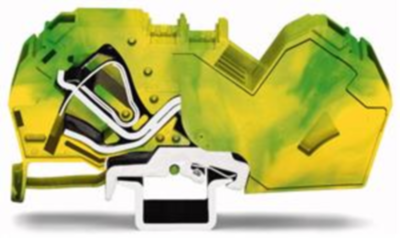

785-607 WAGO Series Terminals Image 1
785-607 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
17.9095 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
17.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
17.9095 €

2-Conductor protective earth terminal, 785-607, Wago

2-conductor protective earth terminal block; 35 mm²; with integrated end plate; lateral and central labeling; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 35.00 mm²; green-yellow

Technical specifications
Height 114 mm
Width 16 mm
Version 2-wire protective earth terminal
Connection spring-clamp connection
Rated current 125 A
Pin number 1 pole
Colour yellow/green
Number of terminals 2
AWG cross-section AWG 8 to 2
Cable cross-section 6.0-35 mm²
Length 44.5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
