785-601 | WAGO

2-wire feed-through terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, gray, 785-601

Order No.: 45P0634
EAN: 4045454400576
MPN:
785-601
Series: TOPJOB Classic

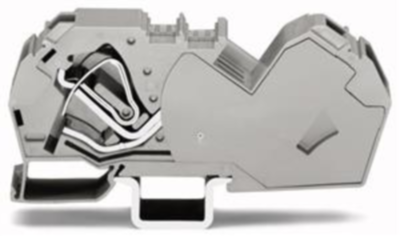

785-601 WAGO Series Terminals Image 1
785-601 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
11.3526 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
11.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.3526 €

2-Conductor through terminal block, 785-601, Wago

2-conductor feed-through terminal with integrated end plate gray

Technical specifications
Version 2-wire feed-through terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 6.0-35 mm²
AWG cross-section AWG 8 to 2
Rated surge voltage 8 kV
Rated current 125 A
Rated Voltage 1000 V
Degree of soiling 3
Length 44.5 mm
Width 16 mm
Height 114 mm
Connection spring-clamp connection
Colour gray
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
