784-623 | WAGO

1-wire potential equalization terminal, cage clamp, 0.2-10 mm², 1 pole, 57 A, 6 kV, gray, 784-623

Order No.: 45P8305
EAN: 4045454016999
MPN:
784-623
784-623 WAGO Series Terminals

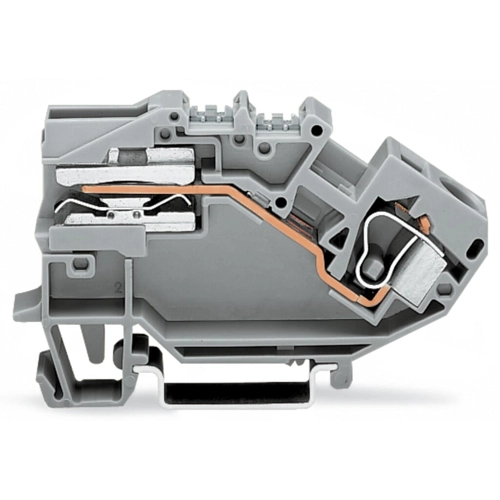

Image may differ
Unit Price (€ / pc.)
5.2479 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.25 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2479 €
10 pcs.
4.9861 €
50 pcs.
4.7362 €
100 pcs.
4.4982 €
*incl. VAT plus shipping costs
Subject to prior sale

1-conductor power distribution disconnect terminal block, 784-623, WAGO

This power distribution disconnect terminal block ensures effortless electrical installation. Strip lengths must be between 12 mm and 13 mm when connecting a conductor to this power distribution disconnect terminal block. This product features a conductor terminal and utilizes CAGE CLAMP. Our CAGE CLAMP connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the type of conductor, this power distribution disconnect terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 10 mm² on one side and from 0.2 mm² to 16 mm² on the other side. It comes with one level and a clamping point that you can use to connect a single potential. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using a DIN-35 rail.

Technical specifications
Filter Property Value
AWG cross-section AWG 24 to 8
Rated current 57 A
Number of terminals 1
Height 82.5 mm
Colour gray
Rated surge voltage 6 kV
Width 10 mm
Degree of soiling 3
Connection cage clamp
Pin number 1 pole
Version 1-wire potential equalization terminal
Rated Voltage 400 V
Cable cross-section 0.2-10 mm²
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
