784-607 | WAGO

2-wire protective earth terminal, spring-clamp connection, 0.2-10 mm², 1 pole, 57 A, yellow/green, 784-607

Order No.: 45P0629
EAN: 4045454084752
MPN:
784-607
Series: TOPJOB Classic

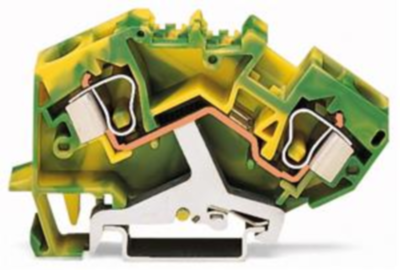

784-607 WAGO Series Terminals Image 1
784-607 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
7.9968 € *
Available: 20 pcs.
Total Price:
8.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.9968 €

2-Conductor protective earth terminal, 784-607, Wago

2-conductor protective earth terminal block; 10 mm²; center labeling; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 10.00 mm²; green-yellow

Technical specifications
Filter Property Value
Width 10 mm
Connection spring-clamp connection
Version 2-wire protective earth terminal
Pin number 1 pole
Cable cross-section 0.2-10 mm²
Length 43.5 mm
Height 82.5 mm
Number of terminals 2
Colour yellow/green
Rated current 57 A
AWG cross-section AWG 24 to 8
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
