781-637 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, yellow/green, 781-637
Unit Price (€ / pc.)
4.9742 € *
Standard delivery time from the manufacturer is: 4 Weeks

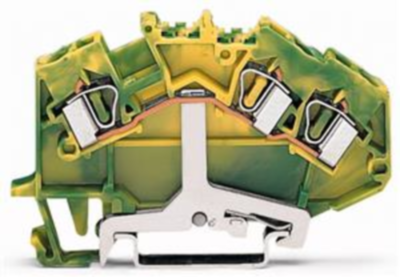

Ground terminal block, 781-637, WAGO
3-conductor ground terminal block, 4 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 4,00 mm², green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Number of terminals | 3 | |
| Width | 6 mm | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28 to 12 | |
| Pin number | 1 pole | |
| Version | 3-wire protective earth terminal | |
| Cable cross-section | 0.08-4.0 mm² | |
| Height | 77 mm | |
| Length | 43.5 mm | |
| Rated current | 32 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
