781-607 | WAGO
2-wire protective earth terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, yellow/green, 781-607
Unit Price (€ / pc.)
4.1769 € *
Standard delivery time from the manufacturer is: 4 Weeks

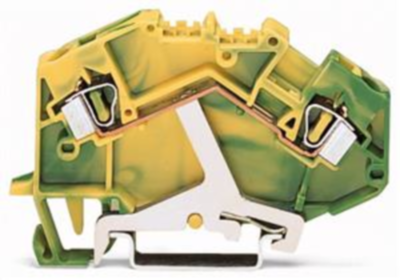

2-Conductor protective earth terminal, 781-607, Wago
2-conductor protective earth terminal block; 4 mm²; center labeling; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 4.00 mm²; green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Length | 43.5 mm | |
| Rated current | 32 A | |
| Number of terminals | 2 | |
| Height | 77 mm | |
| Colour | yellow/green | |
| Width | 6 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| Pin number | 1 pole | |
| Version | 2-wire protective earth terminal | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 0.08-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
