769-227 | WAGO

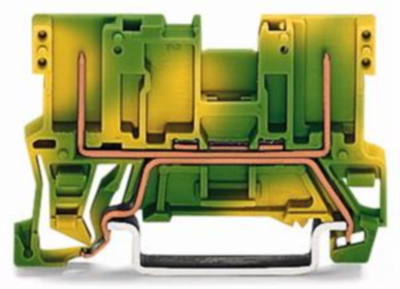

2-pin PE base terminal, spring-clamp connection, 1 pole, 32 A, yellow/green, 769-227
Unit Price (€ / pc.)
2.1896 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1896 €
10 pcs.
2.0230 €
50 pcs.
1.8326 €
100 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale
Ground carrier terminal block, 769-227, WAGO
2-pin ground carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 1 pole | |
| Number of terminals | 1 | |
| Height | 52.5 mm | |
| Colour | yellow/green | |
| Rated current | 32 A | |
| Version | 2-pin PE base terminal | |
| Connection | spring-clamp connection | |
| Width | 5 mm | |
| Length | 28.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
