769-218/281-410 | WAGO
1 conductor/1 pin component base terminal with diode 1N4007, spring-clamp connection, 0.08-4.0 mm², 1 pole, 500 mA, gray, 769-218/281-410
Unit Price (€ / pc.)
4.8909 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.89 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8909 €
10 pcs.
4.5101 €
50 pcs.
4.0936 €
100 pcs.
3.6890 €
*incl. VAT plus shipping costs
Subject to prior sale

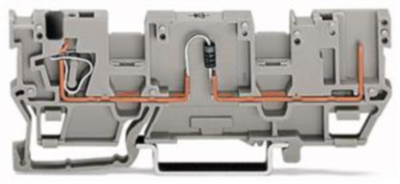

1-Conductor/1-pin component carrier terminal block, 769-218/281-410, Wago

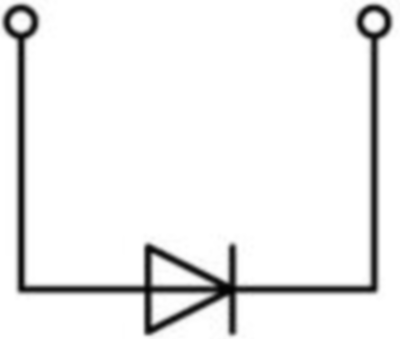

1-wire/1-pin diode base terminal block anode left with 2-fold cross-bridge according to EN 60715 gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Length | 28.5 mm | |
| Rated current | 500 mA | |
| Number of terminals | 1 | |
| Height | 87.5 mm | |
| Colour | gray | |
| Width | 5 mm | |
| Connection | spring-clamp connection | |
| Pin number | 1 pole | |
| Version | 1 conductor/1 pin component base terminal with diode 1N4007 | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.08-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
