769-203 | WAGO

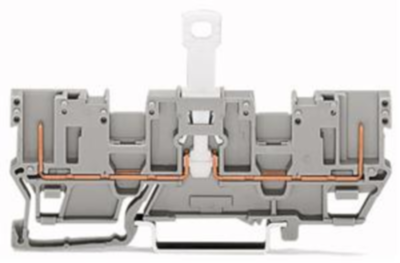

2-pin disconnect base terminal, 1 pole, 16 A, 4 kV, gray, 769-203
Unit Price (€ / pc.)
3.3915 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1297 €
50 pcs.
2.8441 €
100 pcs.
2.5585 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Pin disconnect carrier terminal block, 769-203, Wago
2-pin-disconnect basic terminal block with shield bus with 2-fold cross-bridging according to EN 60715 grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 250 V | |
| Pin number | 1 pole | |
| Number of terminals | 2 | |
| Height | 101 mm | |
| Colour | gray | |
| Degree of soiling | 3 | |
| Rated current | 16 A | |
| Version | 2-pin disconnect base terminal | |
| Width | 5 mm | |
| Rated surge voltage | 4 kV | |
| Length | 28.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
