769-201 | WAGO

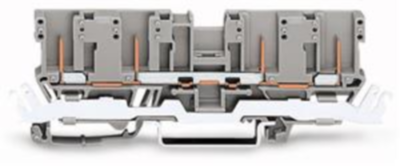

4-pin basic terminal, spring-clamp connection, 2 pole, 32 A, 4 kV, gray, 769-201
Unit Price (€ / pc.)
2.7013 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4871 €
50 pcs.
2.2610 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
4 pin base terminal, 769-201, Wago
4-pin basic terminal block with shield bus according to EN 60715 gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Length | 28.5 mm | |
| Rated current | 32 A | |
| Number of terminals | 4 | |
| Height | 101 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Width | 5 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Version | 4-pin basic terminal | |
| Rated Voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
