727-226/023-000 | WAGO

4-level potential terminal, spring-clamp connection, 0.08-1.5 mm², 1 pole, 18 A, 4 kV, orange, 727-226/023-000

Order No.: 44P3414
EAN: 4045454189082
MPN:
727-226/023-000
Series: 727
727-226/023-000 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
11.5192 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
11.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.5192 €

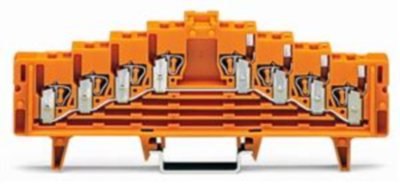

4-level same potential terminal block, 727-226/023-000, Wago

4-level potential terminal without snap-in hook Imprint: 3-2-1-0--0-1-2-3 all terminals are short-circuited to each other according to EN 60715 orange

Technical specifications
Version 4-level potential terminal
Number of terminals 16
Pin number 1 pole
Cable cross-section 0.08-1.5 mm²
AWG cross-section AWG 28 to 16
Rated surge voltage 4 kV
Rated current 18 A
Rated Voltage 250 V
Degree of soiling 3
Length 44.5 mm
Width 7.62 mm
Height 126 mm
Connection spring-clamp connection
Colour orange
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
