727-126 | WAGO

8-level potential terminal, spring-clamp connection, 0.08-1.5 mm², 1 pole, 18 A, 4 kV, orange, 727-126

Order No.: 44P3287
EAN: 4045454187491
MPN:
727-126
Series: 727
727-126 WAGO Series Terminals

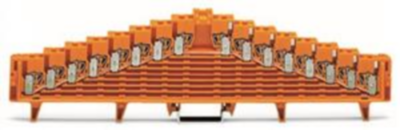

Image may differ
Unit Price (€ / pc.)
19.6112 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
19.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
19.6112 €

8-level same potential terminal block, 727-126, Wago

8-level potential terminal without snap-in hook without imprint all clamping points are short-circuited among each other according to EN 60715 orange

Technical specifications
Version 8-level potential terminal
Number of terminals 31
Pin number 1 pole
Cable cross-section 0.08-1.5 mm²
AWG cross-section AWG 28 to 16
Rated surge voltage 4 kV
Rated current 18 A
Rated Voltage 250 V
Degree of soiling 3
Length 58.5 mm
Width 7.62 mm
Height 226 mm
Connection spring-clamp connection
Colour orange
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
