726-782 | WAGO

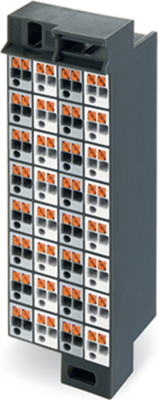

Matrix patchboard, 726-782, WAGO

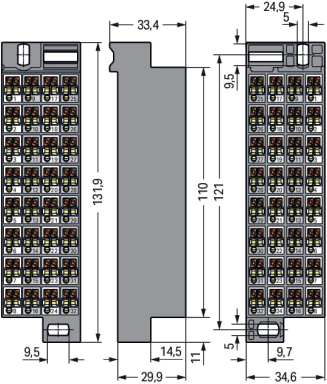

The matrix patchboard simplifies electrical installation. Ensure that the strip length is 10 mm when connecting conductors to this matrix patchboard. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector outperforms the competition. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The dimensions are 34.6 x 131.9 x 33.4 mm (width x height x depth). Depending on the type of conductor, this matrix patchboard is designed for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on both sides. The dark gray housing is made of polyamide (PA66) for insulation.
