726-781 | WAGO

Shunting honeycomb, cage clamp, 0.08-1.5 mm², 32 pole, 10 A, 8 kV, dark gray/white/gray, 726-781

Order No.: 45P8039
EAN: 4055143579490
MPN:
726-781
Series: 726

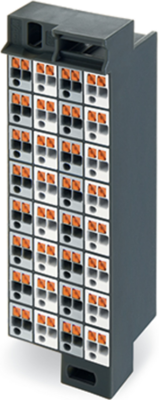

726-781 WAGO Series Terminals Image 1

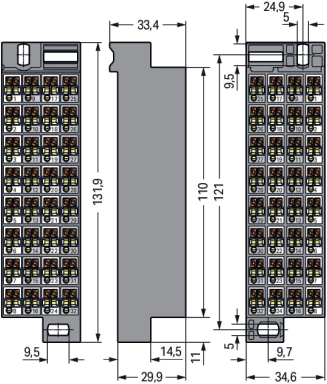

726-781 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
80.7177 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
2,421.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
30 pcs.
80.7177 €

Matrix patchboard, 726-781, WAGO

Enjoy easy electrical installation with this matrix patchboard. Ensure that the strip length is 10 mm when connecting conductors to this matrix patchboard. This product features a conductor terminal and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools-all thanks to its pluggable design. Dimensions: 34.6 x 131.9 x 33.4 mm (width x height x depth). This matrix patchboard is suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm² on both sides. The dark gray housing is made of polyamide (PA66) for insulation.

Technical specifications
Colour dark gray/white/gray
AWG cross-section AWG 28 to 16
Rated current 10 A
Width 34.6 mm
Height 131.9 mm
Length 33.4 mm
Cable cross-section 0.08-1.5 mm²
Number of terminals 2
Pin number 32 pole
Version shunting honeycomb
Connection cage clamp
Rated Voltage 800 V
Rated surge voltage 8 kV
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
