726-671 | WAGO
Potential block, cage clamp, 0.02-16 mm²/0.08-2.5 mm², dark gray/green-yellow, 726-671
Unit Price (€ / pc.)
107.0881 € *
Standard delivery time from the manufacturer is: 3 Weeks

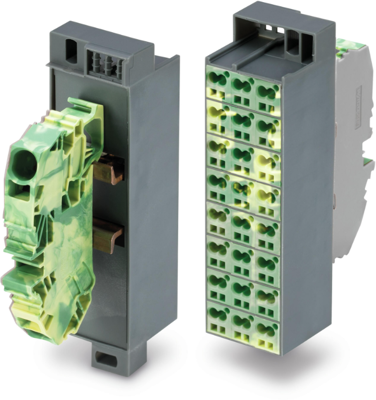

Protective earth potential block, 726-671, Wago
Protective conductor potential block imprint 1-24 with 1 power terminal incl. end plate Chamber color uniform green-yellow Chamber marking in vertical line for 19' racks Narrow design dark gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 6/AWG 28 to 14 | |
| Length | 80.7 mm | |
| Number of terminals | 1 | |
| Height | 132 mm | |
| Colour | dark gray/green-yellow | |
| Width | 34.6 mm | |
| Connection | cage clamp | |
| Version | potential block | |
| Cable cross-section | 0.02-16 mm²/0.08-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
