726-121 | WAGO

Shunting honeycomb, spring-clamp connection, 0.08-1.5 mm², 32 pole, 10 A, 6 kV, dark gray/gray/white, 726-121

Order No.: 44P3202
EAN: 4044918454902
MPN:
726-121
Series: 726

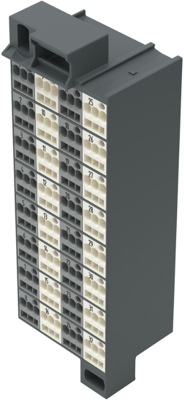

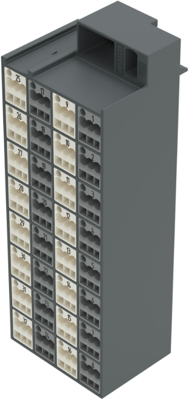

726-121 WAGO Series Terminals Image 1
726-121 WAGO Series Terminals Image 2
726-121 WAGO Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
98.9723 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
98.97 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
98.9723 €

Matrix patchboard, 726-121, Wago

Shunting honeycomb Imprint 1-32 Chamber colors gray/white Chamber marking on sides 1 and 2 in vertical line 32-pin dark gray

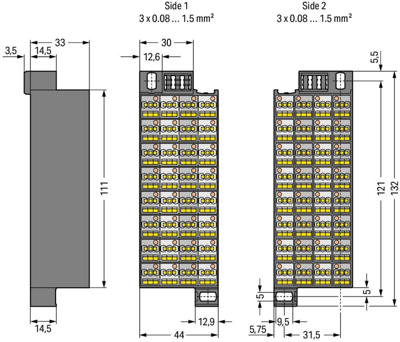

Technical specifications
Connection Federklemmanschluss
Number of terminals 3
Version Rangierwabe
AWG cross-section AWG 28 bis 16
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 44 mm
Colour dunkelgrau/grau/weiß
Height 132 mm
Length 36.5 mm
Cable cross-section 0,08-1,5 mm²
Rated current 10 A
Pin number 32-polig
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
