285-639 | WAGO

2-wire feed-through terminal, cage clamp, 6-35 mm², 1 pole, 125 A, 12 kV, black, 285-639

Order No.: 45P7967
EAN: 4066966231939
MPN:
285-639
Series: 285

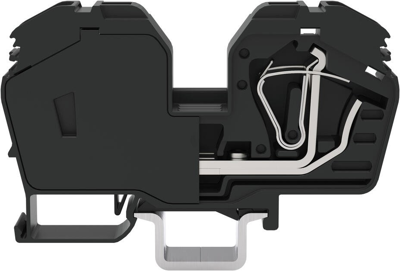

285-639 WAGO Series Terminals Image 1

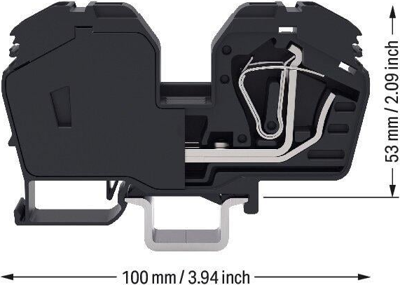

285-639 WAGO Series Terminals Image 2

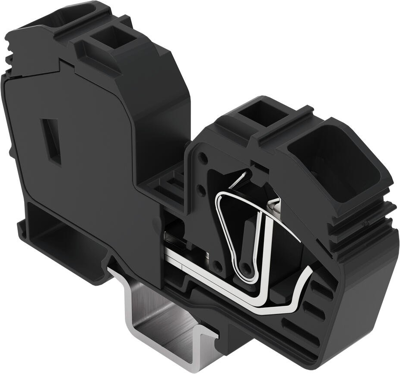

285-639 WAGO Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
11.3883 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.39 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3883 €
10 pcs.
10.5910 €
50 pcs.
9.7461 €
100 pcs.
8.8655 €
*incl. VAT plus shipping costs
Subject to prior sale

Through terminal block, 285-639, WAGO

Quick and easy connections are guaranteed with this through terminal block (item number 285-639). Whether for use in industry or building installations, our rail-mount through terminal blocks make it easy to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. Our through rail-mount terminal block is rated for 1000 V and is designed to handle a rated current of up to 125 A. Conductors should only be connected to this through terminal block if their strip length is 23 mm. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection offers a reliable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules.

This through terminal block is suitable for conductor cross sections ranging from 6 mm² to 35 mm². It has one level. You can connect a single potential using the two clamping points. The black housing is made of polyamide (PA66) for insulation. This through rail-mount terminal block is operated with an operating tool. These through rail-mount terminal blocks are mounted using DIN-35 rails. You can connect copper conductors via front-entry wiring.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection cage clamp
Rated current 125 A
Version 2-wire feed-through terminal
Pin number 1 pole
Width 16 mm
Height 100 mm
AWG cross-section AWG 10 to 2
Degree of soiling 3
Rated surge voltage 12 kV
Colour black
Number of terminals 2
Cable cross-section 6-35 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
