285-633 | WAGO

2-wire feed-through terminal, cage clamp, 6-35 mm², 1 pole, 125 A, 12 kV, red, 285-633

Order No.: 45P7965
EAN: 4055143805544
MPN:
285-633
Series: 285

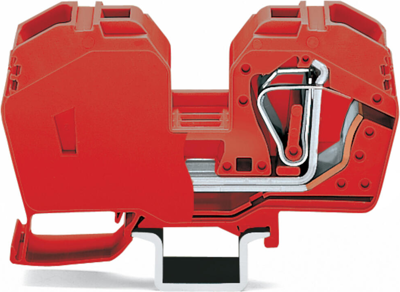

285-633 WAGO Series Terminals Image 1

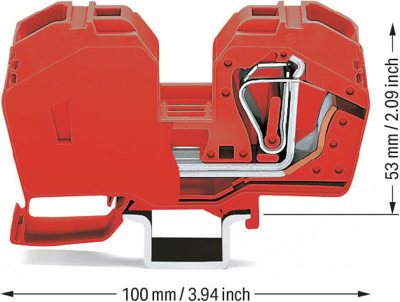

285-633 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
11.3883 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.39 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3883 €
10 pcs.
10.5910 €
50 pcs.
9.7461 €
100 pcs.
8.8655 €
*incl. VAT plus shipping costs
Subject to prior sale

Through terminal block, 285-633, WAGO

Quick and easy connections are guaranteed with this through terminal block (item number 285-633). Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Rated current and voltage are key factors to consider when choosing a through rail-mount terminal block, as they determine the product's suitability for different applications. This product has a rated voltage of 1000 V and a rated current of 125 A. Strip lengths must be 23 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this connector outperforms the competition. Our celebrated universal connection known as CAGE CLAMP is industry-leading when it comes to connection technology and electrical interconnections.

Depending on the conductor type,This through terminal block is suitable for conductor cross sections ranging from 6 mm² to 35 mm². It features one level and two clamping points that you can use to connect a single potential. The red housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this through rail-mount terminal block. These through rail-mount terminal blocks are mounted using DIN-35 rails. You can connect copper conductors thanks to front-entry wiring.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection cage clamp
Rated current 125 A
Version 2-wire feed-through terminal
Pin number 1 pole
Width 16 mm
Height 100 mm
AWG cross-section AWG 10 to 2
Degree of soiling 3
Rated surge voltage 12 kV
Colour red
Number of terminals 2
Cable cross-section 6-35 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
