285-197/999-950 | WAGO
2-wire protective earth terminal, spring-clamp connection, 25-95 mm², 1 pole, 211 A, yellow/green, 285-197/999-950
Unit Price (€ / pc.)
33.0463 € *
Standard delivery time from the manufacturer is: 4 Weeks

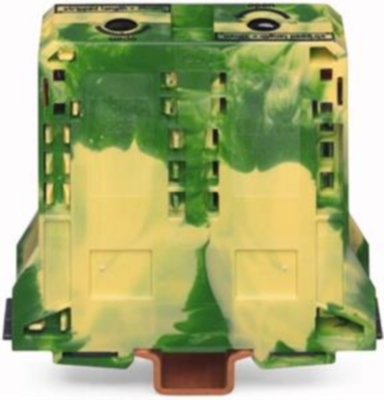

Ground terminal block, 285-197/999-950, Wago
2-wire protective earth terminal block suitable for Ex e II applications green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Width | 25 mm | |
| Colour | yellow/green | |
| Pin number | 1 pole | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 4 to 4/0 | |
| Length | 101 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 800 V | |
| Version | 2-wire protective earth terminal | |
| Height | 107 mm | |
| Rated current | 211 A | |
| Cable cross-section | 25-95 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
