285-157/999-950 | WAGO

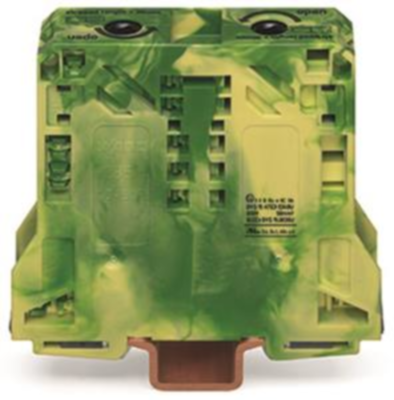

2-wire protective earth terminal, spring-clamp connection, 10-50 mm², 1 pole, 150 A, yellow/green, 285-157/999-950
Unit Price (€ / pc.)
33.7722 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
33.77 € *
Price list
Quantity
Price per unit*
1 pcs.
33.7722 €
10 pcs.
31.4041 €
25 pcs.
28.8932 €
50 pcs.
26.2871 €
*incl. VAT plus shipping costs
Subject to prior sale
2-Conductor protective earth terminal, 285-157/999-950, Wago
2-conductor protective earth terminal block; 50 mm²; suitable for Ex e II applications; lateral marking receptacles; only for mounting rail 35 x 15; 2.3 mm thick; copper; POWER CAGE CLAMP; 50.00 mm²; green-yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 8 to 1/0 | |
| Colour | yellow/green | |
| Connection | spring-clamp connection | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 10-50 mm² | |
| Width | 20 mm | |
| Height | 94 mm | |
| Version | 2-wire protective earth terminal | |
| Pin number | 1 pole | |
| Length | 87 mm | |
| Rated current | 150 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
