285-132 | WAGO

2-wire feed-through terminal, spring-clamp connection, 6-35 mm², 1 pole, 125 A, 8 kV, brown, 285-132

Order No.: 45P7962
EAN: 4055143679459
MPN:
285-132
Series: 285

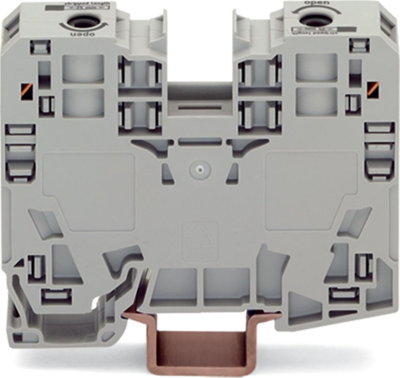

285-132 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
9.1511 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.15 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1511 €
10 pcs.
8.5085 €
50 pcs.
7.8302 €
100 pcs.
7.1162 €
*incl. VAT plus shipping costs
Subject to prior sale

Through terminal block, 285-132, WAGO

Our through terminal block (item number 285-132) makes connections quick and easy. Strip lengths must be 25 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes POWER CAGE CLAMP. The POWER CAGE CLAMP is perfect for connecting large conductor cross-sections. This universal connector is both reliable and maintenance-free. What’s more, you can use it to connect all types of conductors and the clamping point can be locked open, making it easier to use. You do not need to use a torque wrench or prepare the conductor. For example, crimping ferrules is not necessary. Depending on the type of conductor, this through terminal block is ideal for conductor cross sections ranging from 6 mm² to 35 mm². It comes with one level and two clamping points for connecting a single potential. The brown housing is made of polyamide (PA66) for insulation. These high-current terminal blocks are mounted using DIN-rails 35 x 15.

Technical specifications
Filter Property Value
Rated Voltage 1000 V
Connection spring-clamp connection
Rated current 125 A
Version 2-wire feed-through terminal
Pin number 1 pole
Width 16 mm
Height 86 mm
AWG cross-section AWG 8 to 2
Degree of soiling 3
Rated surge voltage 8 kV
Colour brown
Number of terminals 2
Cable cross-section 6-35 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
