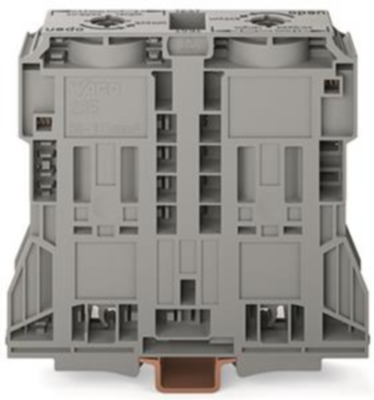

285-1185 | WAGO
2-wire feed-through terminal, spring-clamp connection, 50-185 mm², 1 pole, 353 A, 12 kV, gray, 285-1185
Unit Price (€ / pc.)
44.3513 € *
Available: 4 pcs.
Total Price:
44.35 € *
Price list
Quantity
Price per unit*
1 pcs.
44.3513 €
5 pcs.
39.9245 €
15 pcs.
37.1161 €
*incl. VAT plus shipping costs
Subject to prior sale
Through terminal block, 285-1185, WAGO
2-conductor through terminal block, 185 mm², lateral marker slots, only for DIN 35 x 15 rail, POWER CAGE CLAMP, 185,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 2-wire feed-through terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 50-185 mm² | |
| AWG cross-section | AWG 1/0 | |
| Rated surge voltage | 12 kV | |
| Rated current | 353 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 116 mm | |
| Width | 32 mm | |
| Height | 133 mm | |
| Connection | spring-clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 49119900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
