285-1167 | WAGO

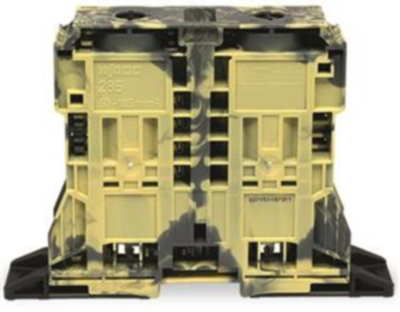

2-wire feed-through terminal, spring-clamp connection, 50-185 mm², 1 pole, 353 A, 12 kV, yellow/green, 285-1167
Unit Price (€ / pc.)
46.1482 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
2-Conductor through terminal block, 285-1167, Wago
2-conductor feed-through terminal block; 185 mm²; lateral labeling receptacles; with mounting flanges; POWER CAGE CLAMP; 185.00 mm²; dark gray-yellow
Technical specifications
| Version | 2-wire feed-through terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 50-185 mm² | |
| AWG cross-section | AWG 1/0 | |
| Rated surge voltage | 12 kV | |
| Rated current | 353 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 170 mm | |
| Width | 32 mm | |
| Height | 123 mm | |
| Connection | spring-clamp connection | |
| Colour | yellow/green |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
