284-621 | WAGO
Distribution terminal block, spring-clamp connection, 0.2-10 mm², 1 pole, 125 A, 8 kV, gray, 284-621
Unit Price (€ / pc.)
15.4105 € *
Available: 4 pcs.
Total Price:
15.41 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4105 €
10 pcs.
14.3276 €
50 pcs.
13.1852 €
100 pcs.
11.9952 €
*incl. VAT plus shipping costs
Subject to prior sale

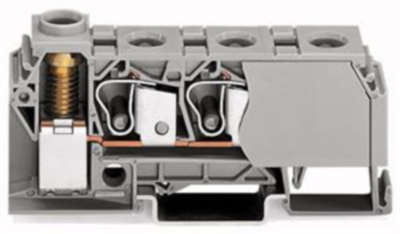

Distribution terminal block, 284-621, WAGO
Distribution terminal block, 10 mm², lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, screw-type and CAGE CLAMPconnection, 3 x CAGE CLAMP connection 10 mm², 1 x screw-clamp connection 35 mm², 10,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Distribution terminal block | |
| Number of terminals | 4 | |
| Pin number | 1 pole | |
| Cable cross-section | 0.2-10 mm² | |
| AWG cross-section | AWG 24 to 8 | |
| Rated surge voltage | 8 kV | |
| Rated current | 125 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 39.5 mm | |
| Width | 17.5 mm | |
| Height | 89 mm | |
| Connection | spring-clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
