282-860 | WAGO

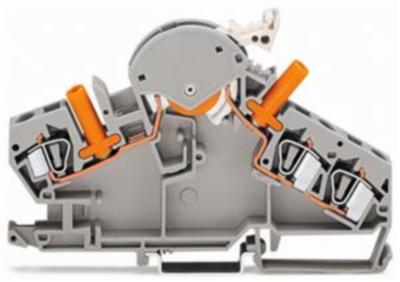

3-wire disconnect and measuring terminal, spring-clamp connection, 0.2-6.0 mm², 2 pole, 30 A, 6 kV, gray, 282-860
Unit Price (€ / pc.)
8.3776 € *
Standard delivery time from the manufacturer is: 10 Weeks
3-Conductor disconnect/test terminal block, 282-860, Wago
3-wire disconnect and measuring terminal; e.g. for voltage transformer circuits; with touch-proof test sockets; for test plug Ø 4 mm; for mounting rail 35 x 15 and 35 x 7.5; 6 mm²; CAGE CLAMP®; 6.00 mm²; gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 3-wire disconnect and measuring terminal | |
| Number of terminals | 3 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated surge voltage | 6 kV | |
| Rated current | 30 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 75 mm | |
| Width | 8 mm | |
| Height | 122 mm | |
| Connection | spring-clamp connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
