281-672 | WAGO
2-wire disconnect terminal block, cage clamp, 0.08-4.0 mm², 16 A, 8 kV, orange, 281-672
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
6.85 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8544 €
10 pcs.
6.3784 €
50 pcs.
5.8667 €
100 pcs.
5.3312 €
*incl. VAT plus shipping costs
Subject to prior sale

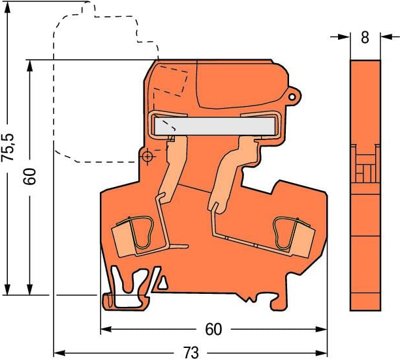

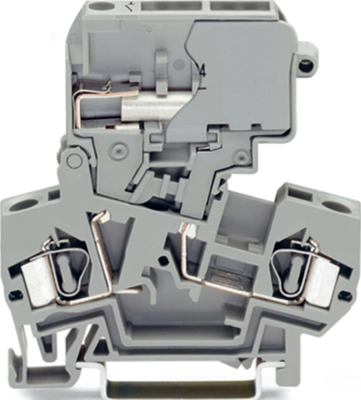

Disconnect terminal block, 281-672, WAGO
This disconnect terminal block makes connections quick and easy. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this disconnect terminal block. This product features conductor terminals and utilizes CAGE CLAMP. CAGE CLAMP connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This disconnect terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm². It has one level. You can connect two potentials using the two clamping points. The orange housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using DIN-35 rail.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Rated current | 16 A | |
| Number of terminals | 2 | |
| Height | 60 mm | |
| Colour | orange | |
| Rated surge voltage | 8 kV | |
| Width | 8 mm | |
| Degree of soiling | 3 | |
| Connection | cage clamp | |
| Version | 2-wire disconnect terminal block | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.08-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
