280-998 | WAGO

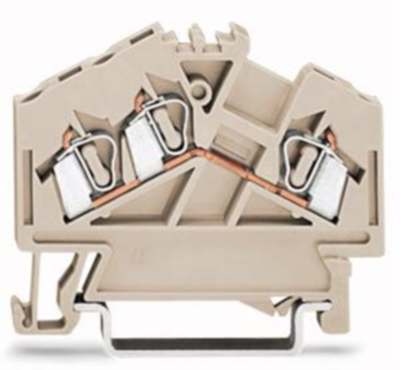

3-wire feed-through terminal, spring-clamp connection, 0.2-2.5 mm², 1 pole, 23 A, gray, 280-998
Unit Price (€ / pc.)
1.7017 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.70 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7017 €
10 pcs.
1.5589 €
50 pcs.
1.4161 €
100 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale
3-Conductor through terminal block, 280-998, Wago
3-conductor through terminal block Ex e II suitable for applications Ex e II light gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Pin number | 1 pole | |
| Length | 36.5 mm | |
| Colour | gray | |
| Cable cross-section | 0.2-2.5 mm² | |
| Connection | spring-clamp connection | |
| Rated current | 23 A | |
| Rated Voltage | 550 V | |
| Number of terminals | 3 | |
| Width | 5 mm | |
| Height | 50.5 mm | |
| Version | 3-wire feed-through terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
