280-995 | WAGO
Double through terminal, spring-clamp connection, 0.2-1.5 mm², 2 pole, 20 A, light gray, 280-995
Unit Price (€ / pc.)
1.8207 € *
Standard delivery time from the manufacturer is: 3 Weeks

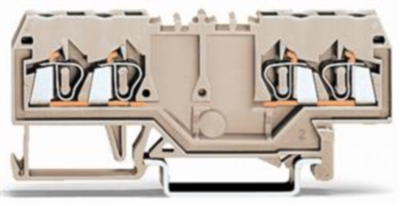

Through terminal block, 280-995, Wago
Double feed-through terminal block Ex e II with double, central labeling receptacle suitable for Ex e II applications light gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Length | 28 mm | |
| Rated current | 20 A | |
| Number of terminals | 4 | |
| Height | 75 mm | |
| Colour | light gray | |
| Width | 5 mm | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Version | double through terminal | |
| Rated Voltage | 550 V | |
| Cable cross-section | 0.2-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
