280-915/281-411 | WAGO

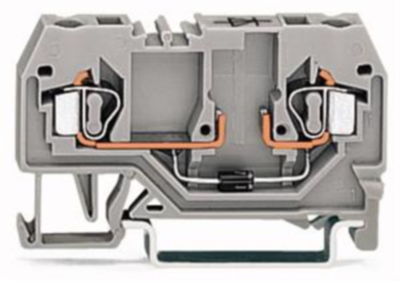

2 conductor component terminal with diode 1N4007, spring-clamp connection, 0.08-2.5 mm², 1 pole, 500 mA, gray, 280-915/281-411
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
2-Conductor diode terminal, 280-915/281-411, Wago

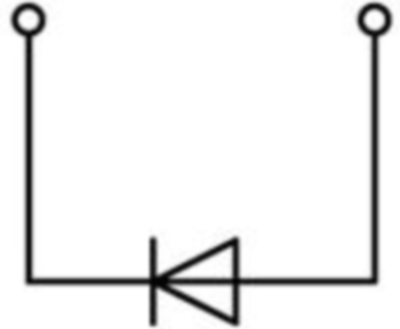

Component terminal block; 2 wires; with diode 1N4007; anode right; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2.50 mm²; gray
Technical specifications
| Colour | gray | |
| AWG cross-section | AWG 28 to 14 | |
| Rated current | 500 mA | |
| Width | 5 mm | |
| Height | 53 mm | |
| Length | 28 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Version | 2 conductor component terminal with diode 1N4007 | |
| Connection | spring-clamp connection | |
| Rated Voltage | 250 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
