280-879 | WAGO
2-wire disconnect and measuring terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 16 A, 6 kV, orange, 280-879
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 6 Weeks

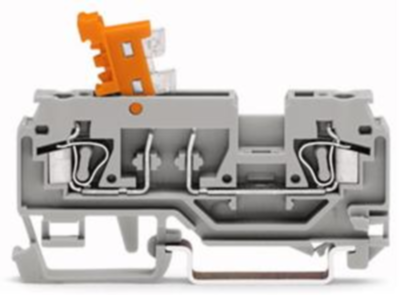

2-wire disconnect and measuring terminal block, 280-879, Wago
2-wire disconnect and measuring terminal block with swivel disconnect blade Disconnect blade holder orange with test opening for test plugs Ø 2 mm and Ø 2.3 mm orange
Technical specifications
| Version | 2-wire disconnect and measuring terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.08-2.5 mm² | |
| AWG cross-section | AWG 28 to 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 16 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |
| Length | 28.5 mm | |
| Width | 5 mm | |
| Height | 69.5 mm | |
| Connection | spring-clamp connection | |
| Colour | orange |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
