280-655/281-410 | WAGO
4 conductor component terminal with diode 1N4007, spring-clamp connection, 0.08-2.5 mm², 1 pole, 500 mA, gray, 280-655/281-410
Unit Price (€ / pc.)
5.0694 € *
Available: 68 pcs.
Leadtime: 10 Weeks **
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
10 pcs.
4.6648 €
50 pcs.
4.2364 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
**Subject to prior sale

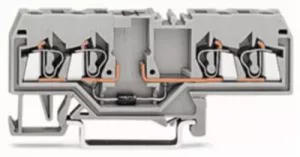

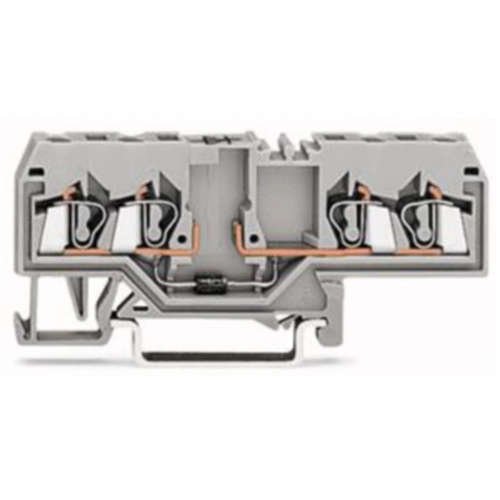

4-Conductor diode terminal, 280-655/281-410, Wago

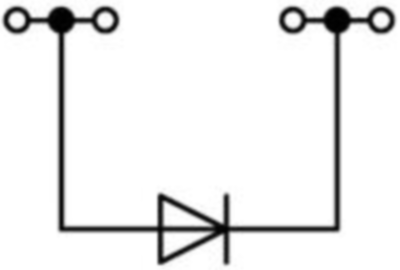

Component terminal block; 4 conductors; with diode 1N4007; anode left; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2.50 mm²; gray
Technical specifications
| Colour | gray | |
| AWG cross-section | AWG 28 to 14 | |
| Rated current | 500 mA | |
| Width | 5 mm | |
| Height | 75 mm | |
| Length | 28 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Number of terminals | 4 | |
| Pin number | 1 pole | |
| Version | 4 conductor component terminal with diode 1N4007 | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 250 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
