280-640 | WAGO

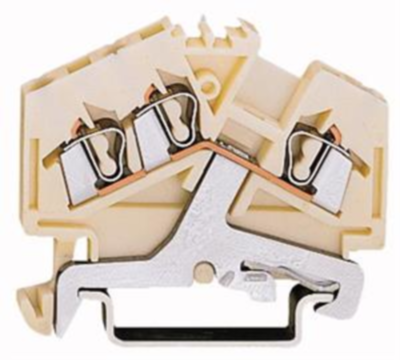

3-wire shield wire terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, white, 280-640
Unit Price (€ / pc.)
3.5224 € *
Standard delivery time from the manufacturer is: 3 Weeks
3-Conductor shield terminal block, 280-640, Wago
3-conductor shield clamp; 2.5 mm²; center marking; for mounting rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2.50 mm²; white
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Degree of soiling | 3 | |
| Pin number | 1 pole | |
| Length | 36.5 mm | |
| Colour | white | |
| Cable cross-section | 0.08-2.5 mm² | |
| Connection | spring-clamp connection | |
| Rated current | 24 A | |
| Rated Voltage | 800 V | |
| Number of terminals | 3 | |
| Width | 5 mm | |
| Height | 50.5 mm | |
| Version | 3-wire shield wire terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
