280-572/281-411 | WAGO
3-wire actuator terminal, spring-clamp connection, 0.08-2.5 mm², 3 pole, 20 A, 6 kV, gray, 280-572/281-411
Unit Price (€ / pc.)
6.9258 € *
Standard delivery time from the manufacturer is: 3 Weeks

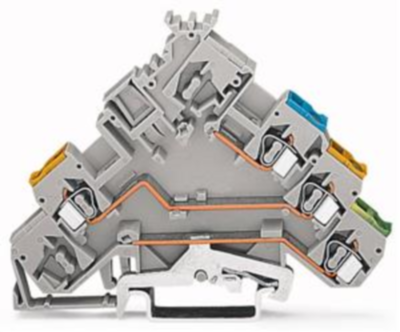

3-Conductor actuator supply terminal block, 280-572/281-411, Wago

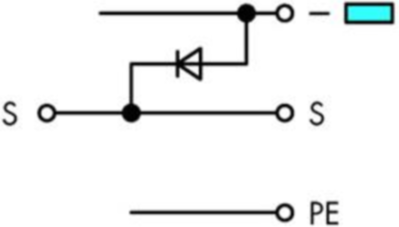

Actuator terminal with PE connection with free-wheeling diode 1N4007 for solenoid valves, servomotors gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 400 V | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 28 to 12 | |
| Number of terminals | 4 | |
| Length | 63.5 mm | |
| Height | 90.5 mm | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Pin number | 3 pole | |
| Colour | gray | |
| Version | 3-wire actuator terminal | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
