261-431/341-000 | WAGO

2-wire terminal strip, cage clamp, 0.08-2.5 mm², 11 pole, 24 A, 6 kV, gray, 261-431/341-000

Order No.: 45P8368
EAN: 4017332283977
MPN:
261-431/341-000
Series: 261

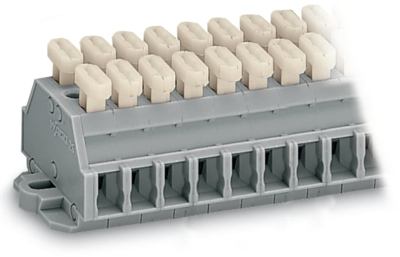

261-431/341-000 WAGO Series Terminals Image 1
261-431/341-000 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
6.8663 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
6.87 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8663 €
10 pcs.
6.4022 €
50 pcs.
5.9976 €
100 pcs.
5.6406 €
*incl. VAT plus shipping costs
Subject to prior sale

2-conductor terminal block, 261-431/341-000, WAGO

This through terminal block (item number 261-431/341-000) makes connections quick and easy. Whether in industrial or building applications, the rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the model, you can use them for either typical through-wiring or potential distribution. Rated current and voltage are key factors to consider when choosing a mini rail-mount terminal block, as they indicate how the product can be used. This product has a rated voltage of 500 V and a rated current of 24 A. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition.

This trusted universal connection known as CAGE CLAMP is the industry standard when it comes to connection technology and electrical interconnections. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It comes with one level and twenty-two clamping points that you can use to connect eleven potentials / 11 poles. The gray housing is made of polyamide (PA66) for insulation. A push-button is used to operate this mini rail-mount terminal block. The side-entry wiring means you can connect copper conductors.

Technical specifications
Version 2-wire terminal strip
Number of terminals 22
Pin number 11 pole
Cable cross-section 0.08-2.5 mm²
AWG cross-section AWG 28 to 14
Rated surge voltage 6 kV
Rated current 24 A
Rated Voltage 500 V
Degree of soiling 3

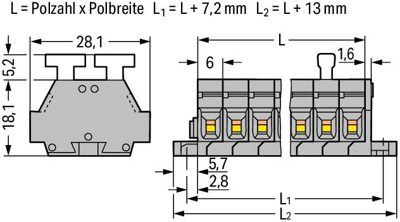

Length 23.3 mm
Width 79 mm
Height 28.1 mm
Connection cage clamp
Colour gray
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
