2210-1307 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.5-16 mm², 1 pole, green-yellow, 2210-1307
Unit Price (€ / pc.)
7.1757 € *
Available in 5 Days: 4,796 pcs. - if ordered today
Total Price:
7.18 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1757 €
10 pcs.
6.6759 €
50 pcs.
6.1404 €
100 pcs.
5.5811 €
*incl. VAT plus shipping costs
Subject to prior sale

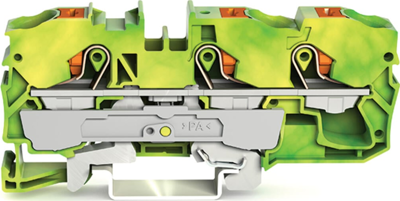

Ground terminal block, 2210-1307, WAGO
3-conductor ground terminal block, with push-button, 10 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 10,00 mm², green-yellow.
Technical specifications
| Colour | green-yellow | |
| AWG cross-section | AWG 20 to 6 | |

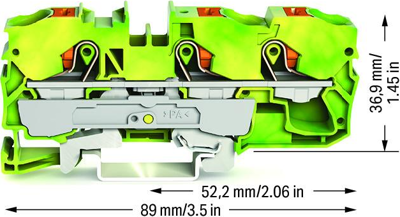

| Width | 10 mm | |
| Height | 89 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Number of terminals | 3 | |
| Pin number | 1 pole | |
| Version | 3-wire protective earth terminal | |
| Connection | spring-clamp connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
