2206-7114 | WAGO
1-wire N disconnect terminal, spring-clamp connection, 0.5-10 mm², 1 pole, 41 A, 4 kV, blue, 2206-7114
Unit Price (€ / pc.)
4.2007 € *
Standard delivery time from the manufacturer is: 4 Weeks

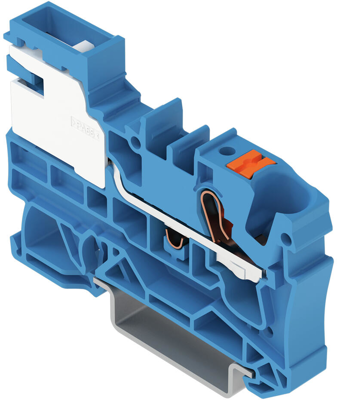

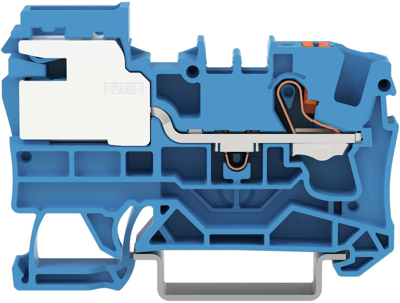

Terminal block, 2206-7114, WAGO
1-conductor N-disconnect terminal block, 6 mm², Push-in CAGE CLAMP, 6,00 mm², blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 7.5 mm | |
| Number of terminals | 1 | |
| Rated surge voltage | 4 kV | |
| AWG cross-section | AWG 20 to 8 | |
| Version | 1-wire N disconnect terminal | |
| Rated current | 41 A | |
| Cable cross-section | 0.5-10 mm² | |
| Rated Voltage | 250 V | |
| Colour | blue | |
| Pin number | 1 pole | |

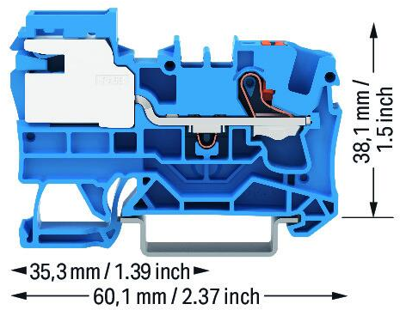

| Height | 60.1 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
