2206-1681 | WAGO
2 conductor fuse terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 25 A, 8 kV, gray, 2206-1681
Unit Price (€ / pc.)
6.8901 € *
Available in 5 Days: 35 pcs. - if ordered today

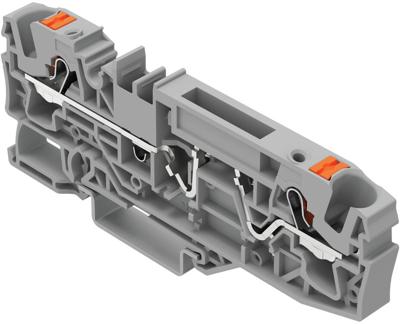

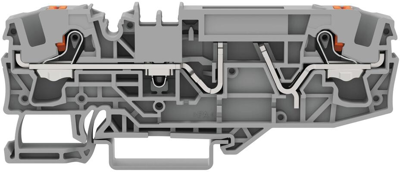

Terminal block, 2206-1681, WAGO
2-conductor fuse terminal block, for automotive blade-style fuses, with test option, with push-button, without blown fuse indication, 6 mm², Push-in CAGE CLAMP, 6,00 mm², gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |

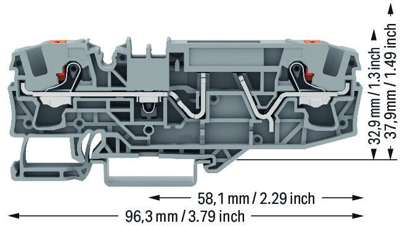

| Height | 96.3 mm | |
| Degree of soiling | 3 | |
| Version | 2-wire fuse terminal | |
| AWG cross-section | AWG 20 to 8 | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Rated surge voltage | 8 kV | |
| Width | 7.5 mm | |
| Rated current | 25 A | |
| Number of terminals | 2 | |
| Cable cross-section | 0.5-10 mm² | |
| Rated Voltage | 500 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
