2206-1675 | WAGO
2-wire disconnect terminal block, spring-clamp connection, 0.5-10 mm², 1 pole, 30 A, 8 kV, black, 2206-1675
Unit Price (€ / pc.)
5.9976 € *
Standard delivery time from the manufacturer is: 4 Weeks
Terminal block, 2206-1675, WAGO

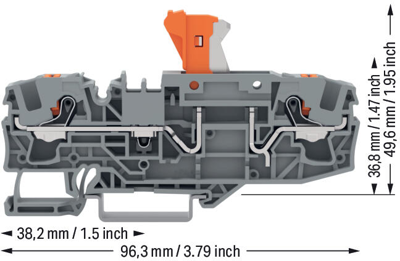

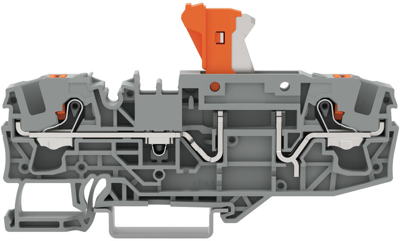

2-conductor disconnect terminal block with pivoting knife disconnect, with test option, orange disconnect link with push-button, for DIN-rail 35 x 15 and 35 x 7.5, 6 mm², Push-in CAGE CLAMP, 6,00 mm², black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Connection | spring-clamp connection | |
| Rated current | 30 A | |
| Version | 2-wire disconnect terminal block | |
| Pin number | 1 pole | |
| Width | 7.5 mm | |
| Height | 96.3 mm | |
| AWG cross-section | AWG 20 to 8 | |
| Degree of soiling | 3 | |
| Rated surge voltage | 8 kV | |
| Colour | black | |
| Number of terminals | 2 | |
| Cable cross-section | 0.5-10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
