2205-7646 | WAGO
Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 3 pole, 32 A, 4 kV, gray, 2205-7646
Unit Price (€ / pc.)
6.2713 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.27 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2713 €
10 pcs.
5.8310 €
50 pcs.
5.3669 €
100 pcs.
4.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

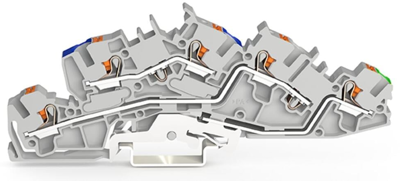

Multilevel installation terminal block, 2205-7646, WAGO
This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools-all thanks to its pluggable design. Depending on the type of conductor, this multilevel installation terminal block is designed for conductor cross sections ranging from 0.5 mm² to 6 mm². It comes with three levels and five clamping points that you can use to connect three potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 10 | |
| Rated current | 32 A | |
| Number of terminals | 5 | |
| Height | 123.5 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Width | 6.2 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| Pin number | 3 pole | |
| Version | installation terminal block | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.5-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
