2205-7645 | WAGO

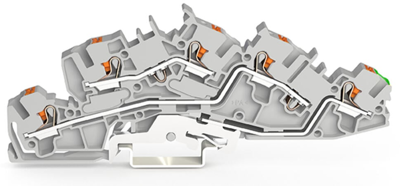

Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 3 pole, 32 A, 4 kV, gray, 2205-7645
Multilevel installation terminal block, 2205-7645, WAGO
This multilevel installation terminal block is designed to connect conductors quickly and easily. Strip lengths must be between 11 mm and 13 mm when connecting conductors to this multilevel installation terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor's ferrule is not necessary. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and five clamping points for connecting three potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 10 | |
| Rated current | 32 A | |
| Number of terminals | 5 | |

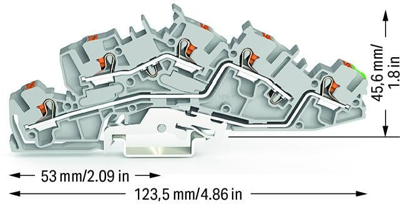

| Height | 123.5 mm | |
| Colour | gray | |
| Rated surge voltage | 4 kV | |
| Width | 6.2 mm | |
| Degree of soiling | 3 | |
| Connection | spring-clamp connection | |
| Pin number | 3 pole | |
| Version | installation terminal block | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.5-6.0 mm² |
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
