2205-7642 | WAGO
Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 2 pole, 32 A, 6 kV, gray, 2205-7642

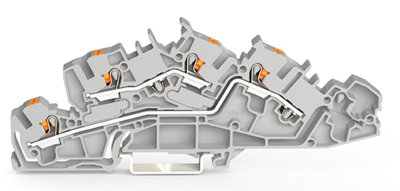

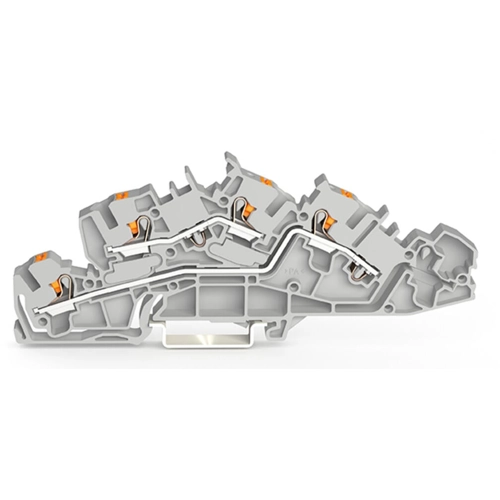

Multilevel installation terminal block, 2205-7642, WAGO
This multilevel installation terminal block ensures effortless electrical installations. Strip lengths must be between 11 mm and 13 mm when connecting conductors to this multilevel installation terminal block. This product incorporates conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and four clamping points for connecting two potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 10 | |
| Rated current | 32 A | |
| Number of terminals | 4 | |
| Height | 123.5 mm | |
| Colour | gray | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Degree of soiling | 2 | |
| Connection | spring-clamp connection | |
| Pin number | 2 pole | |
| Version | installation terminal block | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.5-6.0 mm² |
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
