2205-7641 | WAGO
Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 3 pole, 31 A, 4 kV, gray, 2205-7641
Unit Price (€ / pc.)
7.1043 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.10 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1043 €
10 pcs.
6.6045 €
50 pcs.
6.0809 €
100 pcs.
5.5335 €
*incl. VAT plus shipping costs
Subject to prior sale

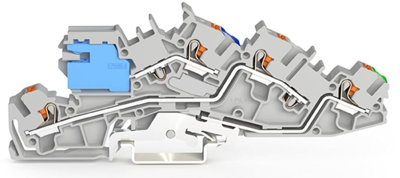

Multilevel installation terminal block, 2205-7641, WAGO
This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and four clamping points for connecting three potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 250 V | |
| Pin number | 3 pole | |
| Number of terminals | 4 | |
| Height | 123.5 mm | |
| Colour | gray | |
| Degree of soiling | 3 | |
| Rated current | 31 A | |
| Cable cross-section | 0.5-6.0 mm² | |
| Version | installation terminal block | |
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 20 to 10 | |
| Width | 6.2 mm | |
| Rated surge voltage | 4 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
