2205-7549 | WAGO
Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 2 pole, 32 A, 6 kV, gray, 2205-7549

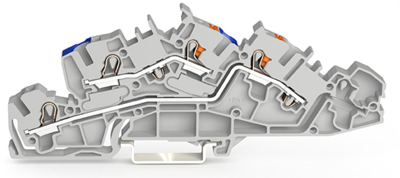

Multilevel installation terminal block, 2205-7549, WAGO
This multilevel installation terminal block makes connections quick and easy. Strip lengths must be between 11 mm and 13 mm when connecting conductors to this multilevel installation terminal block. This product features conductor terminals and utilizes Push-in CAGE CLAMP. Push-in CAGE CLAMP technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Depending on the type of conductor, this multilevel installation terminal block is designed for conductor cross sections ranging from 0.5 mm² to 6 mm². It has three levels. You can connect two potentials using the four clamping points. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
Connection | Federklemmanschluss | |
Number of terminals | 4 | |
Version | Installationsetagenklemme | |
AWG cross-section | AWG 20 bis 10 | |
Rated Voltage | 400 V | |
Rated surge voltage | 6 kV | |

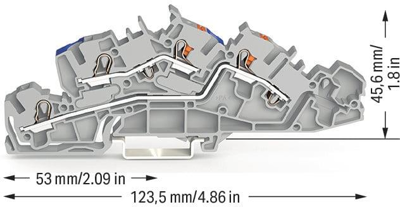

Width | 6.2 mm | |
Colour | grau | |
Height | 123.5 mm | |
Cable cross-section | 0,5-6,0 mm² | |
Rated current | 32 A | |
Pin number | 2-polig | |
Degree of soiling | 2 |
Country of origin | DE |
Customs tariff number | 85369010 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
