Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 3 pole, 32 A, 4 kV, gray, 2205-7546

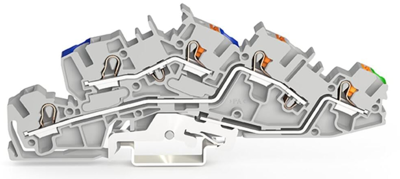

Multilevel installation terminal block, 2205-7546, WAGO
This multilevel installation terminal block is the ideal way to connect conductors quickly and easily. Ensure that the strip lengths are between 11 mm and 13 mm when connecting conductors to this multilevel installation terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP, this connector outperforms the competition. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools-all thanks to its pluggable design. Depending on the conductor type, this multilevel installation terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and five clamping points that you can use to connect three potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.5-6.0 mm² | |
| Pin number | 3 pole | |
| Rated surge voltage | 4 kV | |
| Rated current | 32 A | |
| Degree of soiling | 3 | |
| Number of terminals | 5 | |
| AWG cross-section | AWG 20 to 10 | |
| Version | installation terminal block | |
| Connection | spring-clamp connection | |
| Height | 123.5 mm | |
| Width | 6.2 mm | |
| Colour | gray | |
| Rated Voltage | 250 V |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
