2205-7545 | WAGO
Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 3 pole, 32 A, 4 kV, gray, 2205-7545
Multilevel installation terminal block, 2205-7545, WAGO

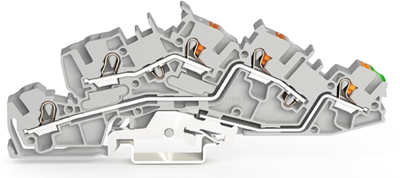

This multilevel installation terminal block streamlines wire connections, making them both quick and easy. Conductors can only be connected to this multilevel installation terminal block if their strip length is between 11 mm and 13 mm. Featuring conductor terminals along with Push-in CAGE CLAMP, this connector outperforms the competition. Push-in CAGE CLAMP connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be plugged in without needing to use any tools-all thanks to its pluggable design. Depending on the conductor type, this multilevel installation terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and five clamping points for connecting three potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.
| Colour | gray | |
| AWG cross-section | AWG 20 to 10 | |
| Rated current | 32 A | |
| Width | 6.2 mm | |
| Height | 123.5 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| Number of terminals | 5 | |
| Pin number | 3 pole | |
| Version | installation terminal block | |
| Connection | spring-clamp connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
