2205-7542 | WAGO

Installation terminal block, spring-clamp connection, 0.5-6.0 mm², 2 pole, 32 A, 6 kV, gray, 2205-7542

Order No.: 45P8325
EAN: 4066966165265
MPN:
2205-7542
Series: 2205

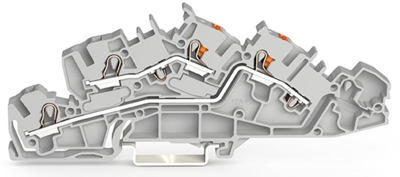

2205-7542 WAGO Series Terminals Image 1

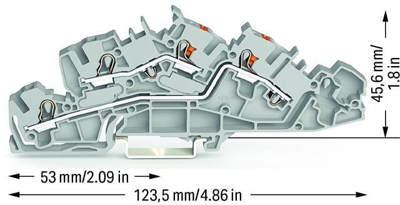

2205-7542 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0460 €
50 pcs.
3.7247 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

Multilevel installation terminal block, 2205-7542, WAGO

This multilevel installation terminal block is designed for seamless electrical installations. Conductors can only be connected to this multilevel installation terminal block if their strip length is between 11 mm and 13 mm. Featuring conductor terminals along with Push-in CAGE CLAMP, this product delivers reliable performance. Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This multilevel installation terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 6 mm². It features three levels and four clamping points that you can use to connect two potentials. The gray housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rails.

Technical specifications
Filter Property Value
Rated Voltage 400 V
Connection spring-clamp connection
Rated current 32 A
Version installation terminal block
Pin number 2 pole
Width 6.2 mm
Height 123.5 mm
AWG cross-section AWG 20 to 10
Degree of soiling 2
Rated surge voltage 6 kV
Colour gray
Number of terminals 4
Cable cross-section 0.5-6.0 mm²
Logistics
Property Value
Country of origin PL
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
